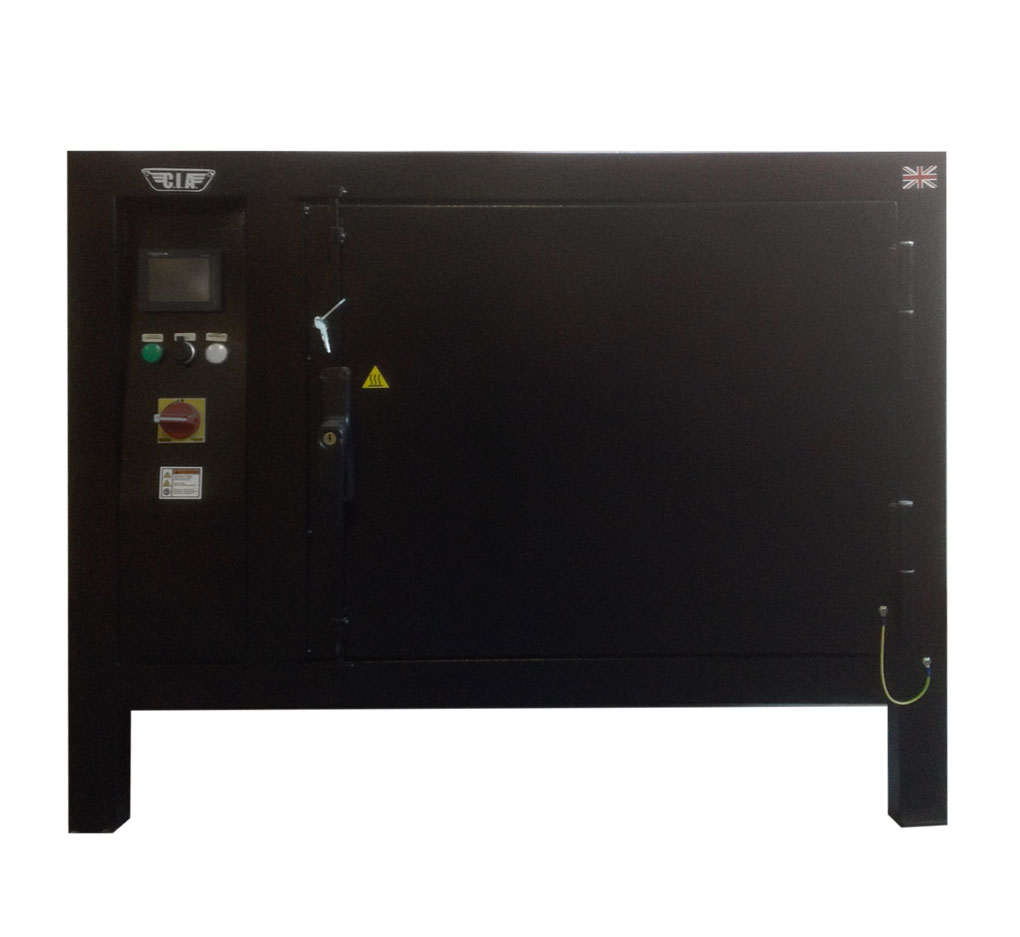

CP3 PLC Controlled Baking Rod Oven
A ventilated oven, for baking and reconditioning electrodes, three shelves, elements underneath the bottom shelve, touch screen PLC easy to program, possibility to connect the unit to the company’s network. Alarm and stop in case of door open and self diagnosis panel to show immediately which component has faulted. On PLC’s screen is possible to visualize the temp/time chart and to download these data using the USB port to guarantee the full traceability of the process. Each oven is supplied with declaration of Conformity and full calibration certificate.
| CP3 SPECIFICATIONS | |
| Capacity | 220 kg |
| Temperature | adjustable up to 400°C |
| PLC | touch screen |
| Voltage | 400VAC on request 230VAC |
| Output | 5 kW three-phase |
| Internal dims.(WxDxH) | 685x480x525mm |
| External dims. (WxDxH) | 1080x720x910mm |
| Weight | 180 kg |
